Decoupling Hardware and Interface: The Engineering Logic Behind OPEN-AIR

Posted on by

In the realm of scientific instrumentation software, a common pitfall is the creation of monolithic applications. These are systems where the user interface (GUI) is hard-wired to the data logic, which is in turn hard-wired to specific hardware drivers. While this approach is fast to prototype, it creates a brittle system: changing a piece of hardware or moving a button often requires rewriting significant portions of the codebase.

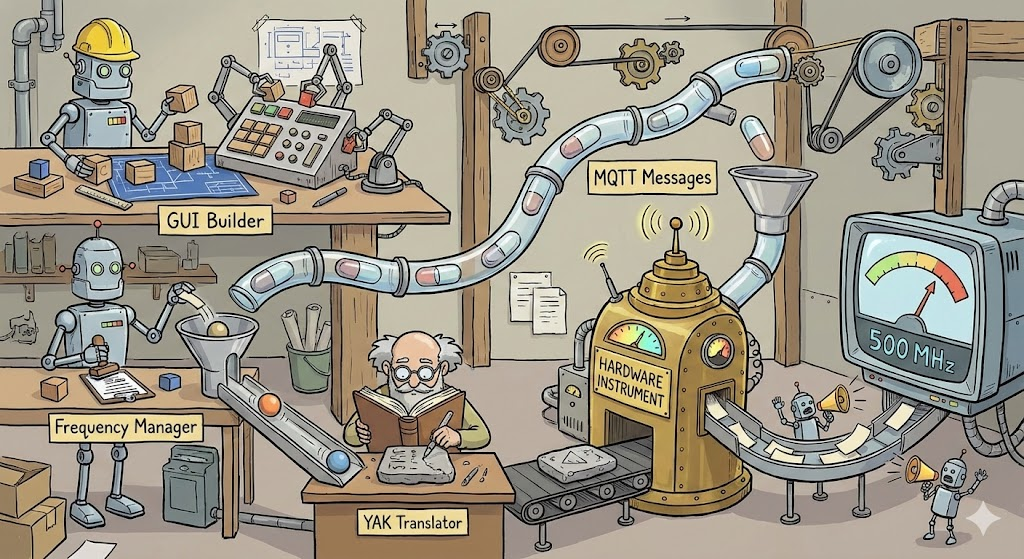

The OPEN-AIR architecture takes a strictly modular approach. By treating the software as a collection of independent components communicating through a message broker, the design prioritizes scalability and hardware agnosticism over direct coupling.

Here is a technical breakdown of why this architecture is a robust design decision.

1. The Dynamic GUI: Data-Driven Interface Generation

Most applications rely on static GUIs—windows and buttons defined explicitly in the code. OPEN-AIR employs a Dynamic GUI Builder.

Instead of hardcoding a layout, the LayoutParser scans the directory structure (specifically the display/ folder) at runtime. It interprets the file hierarchy and configuration files (JSON) as a blueprint.

  • The Design Benefit: This completely decouples the presentation from the application logic. A developer can rearrange the entire control panel, add new tabs, or resize elements simply by moving files or editing a JSON object. No core Python code needs to be recompiled or modified to change the look and feel of the application.

2. The Communication Backbone: MQTT Middleware

The most critical architectural decision in OPEN-AIR is the removal of direct function calls between major components. Instead, the system uses MQTT, a lightweight publish-subscribe network protocol.

  • The Design Benefit: This enforces loose coupling. The user interface does not “tell” the hardware to change frequency; it publishes a “request” to a specific topic. This means components can fail, be restarted, or be swapped out without crashing the rest of the system. It also allows for multiple “listeners”—for example, a logging module can silently record all commands sent to the hardware without interfering with the operation.

3. The Hardware Abstraction Layer (HAL)

When a user initiates a command (e.g., changing the Center Frequency to 500 MHz), the data flows through a pipeline designed to isolate errors and abstract specific hardware requirements.

A. Validation (FrequencyManager) The first stop is the logic layer. The FrequencyManager receives the user intent. It does not communicate with hardware; its sole responsibility is state management and validation. It asks: “Is this a valid frequency?” and “Does this conflict with other settings?”

  • Design Decision: Logic is cheap; hardware communication is expensive. Catching errors here prevents invalid commands from ever reaching the physical instrument.

B. Translation (The YAK) Once validated, the intent is passed to the YakTranslator. This serves as the driver or translation layer. It converts the abstract command (“Set Frequency 500”) into the specific SCPI (Standard Commands for Programmable Instruments) string required by the device (e.g., :FREQ:CENT 500000000 Hz).

  • Design Decision: This enables hardware agnosticism. If you switch from a Rohde & Schwarz analyzer to a Keysight one, you only need to update the Translator. The GUI and the Logic Manager remain untouched.

C. Execution (VISA Proxy) The final step is the VisaProxy, which handles the physical I/O (Input/Output). It takes the raw SCPI string and transmits it via USB or Ethernet.

  • Design Decision: By isolating the physical connection, the software can handle connection timeouts or hardware crashes gracefully, reporting the error back up the chain without freezing the UI.

4. Asynchronous Feedback Loops

In a synchronous system, the UI often freezes while waiting for hardware to respond. OPEN-AIR utilizes independent “Worker” threads (like ActivePeakPublisher) that act as daemons. They constantly poll the hardware for data, process it, and broadcast the results back to the MQTT network.

The GUI simply subscribes to these broadcasts. When data arrives, the display updates.

  • The Design Benefit: This results in a non-blocking user experience. The application remains responsive even if the hardware is performing a slow sweep or heavy calculation.

The OPEN-AIR architecture may appear complex initially due to the number of moving parts. However, this complexity serves a specific purpose: maintainability. By strictly separating the UI, the business logic, the protocol translation, and the physical I/O, the system ensures that changes in one area do not cause cascading failures in another. It is a design built for longevity and adaptation.
